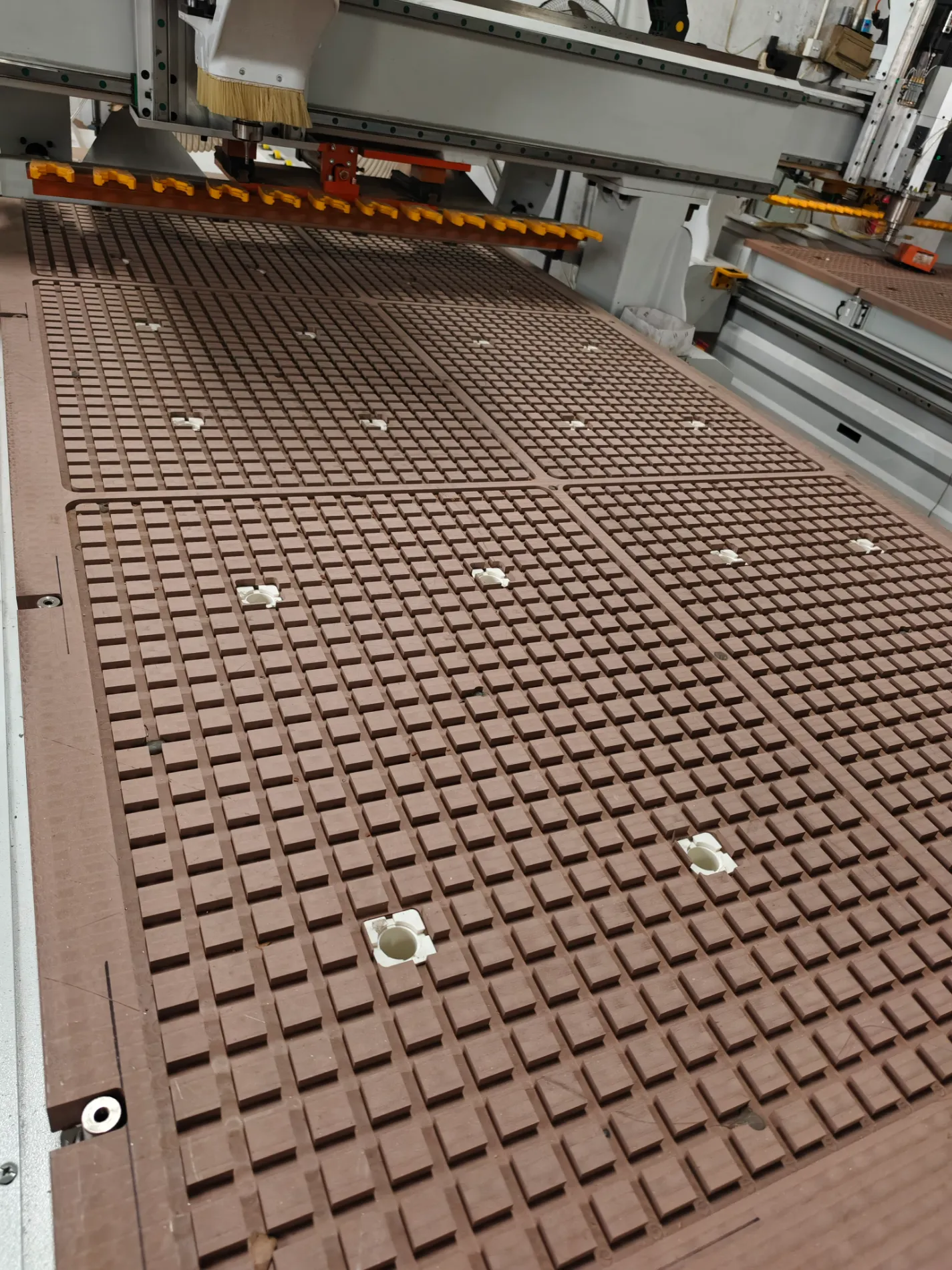

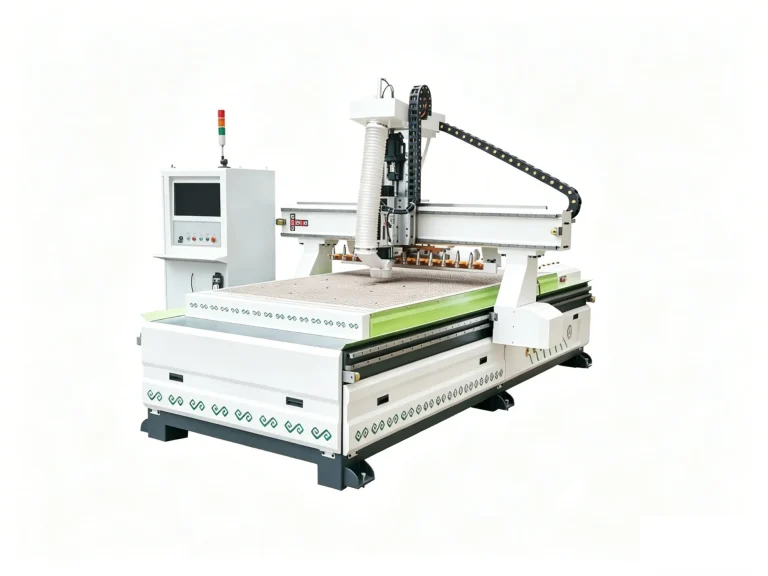

high speed ATC CNC nesting machine with vacuum table

high speed ATC CNC nesting machine with vacuum table

Product Number:
SH-CNC-12
Features:

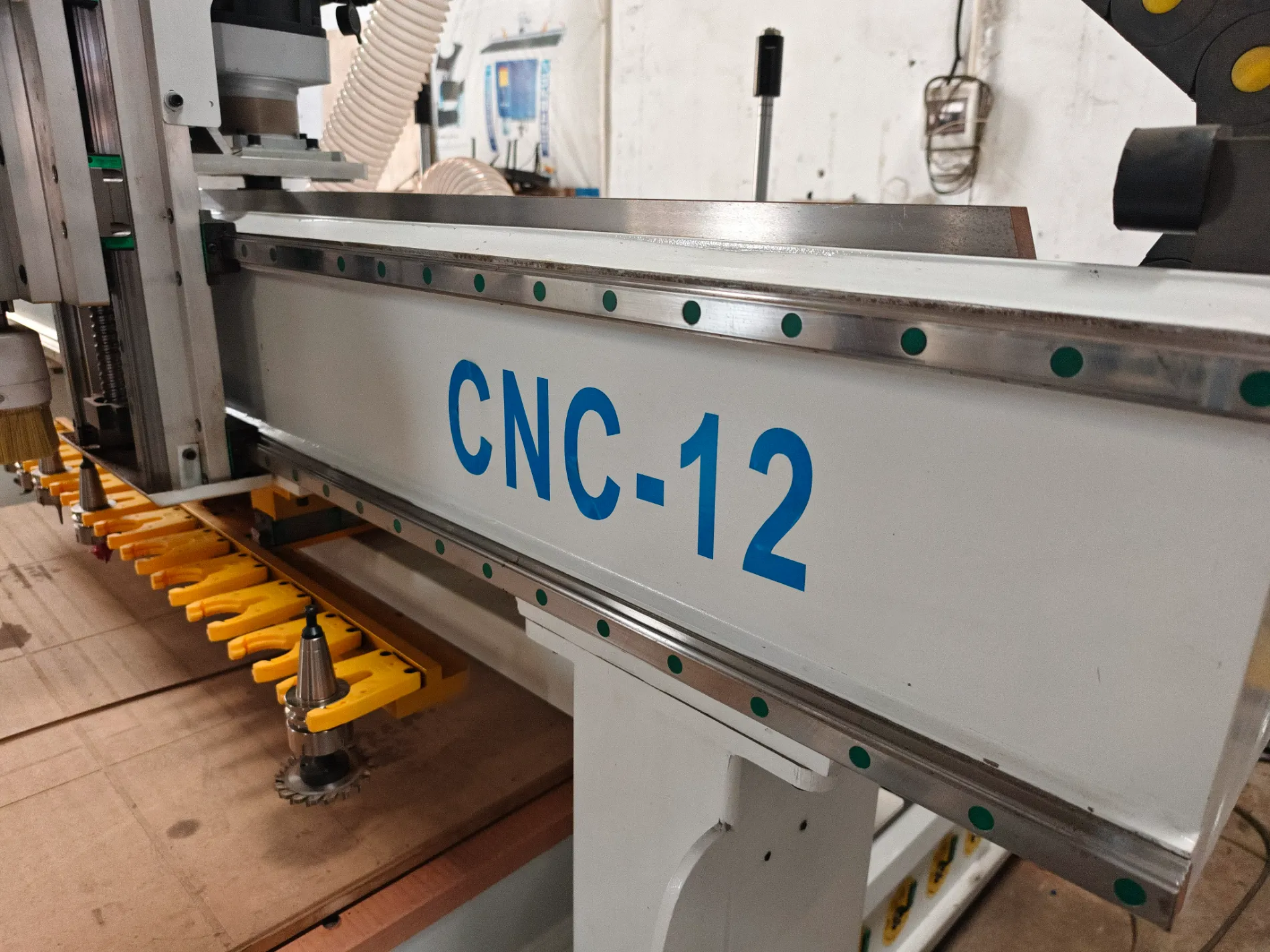

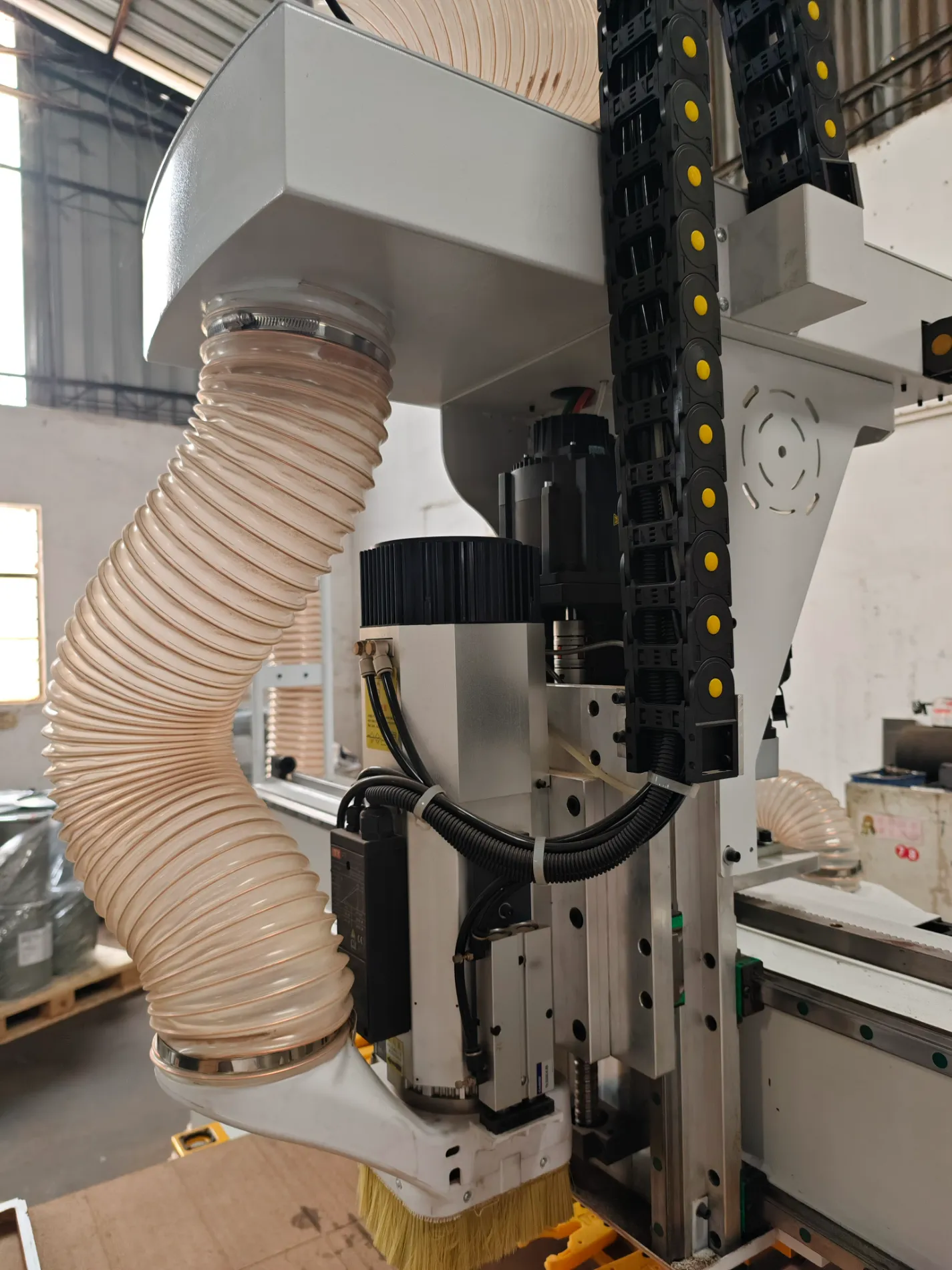

  1. High-Power Single Spindle with ATC System
    • Equipped with a robust 9kW spindle motor and automatic tool changing capability, this machine delivers exceptional cutting power for thick materials and hard woods while eliminating manual tool changes, reducing downtime and increasing productivity.
  2. Large Working Area for Industrial Production
    • With a generous working stroke of 2800×1300mm, the machine can process full-size sheets (4×8 feet and larger), making it perfect for furniture manufacturing, cabinet production, and large-scale woodworking operations.
  3. Advanced Precision Transmission System

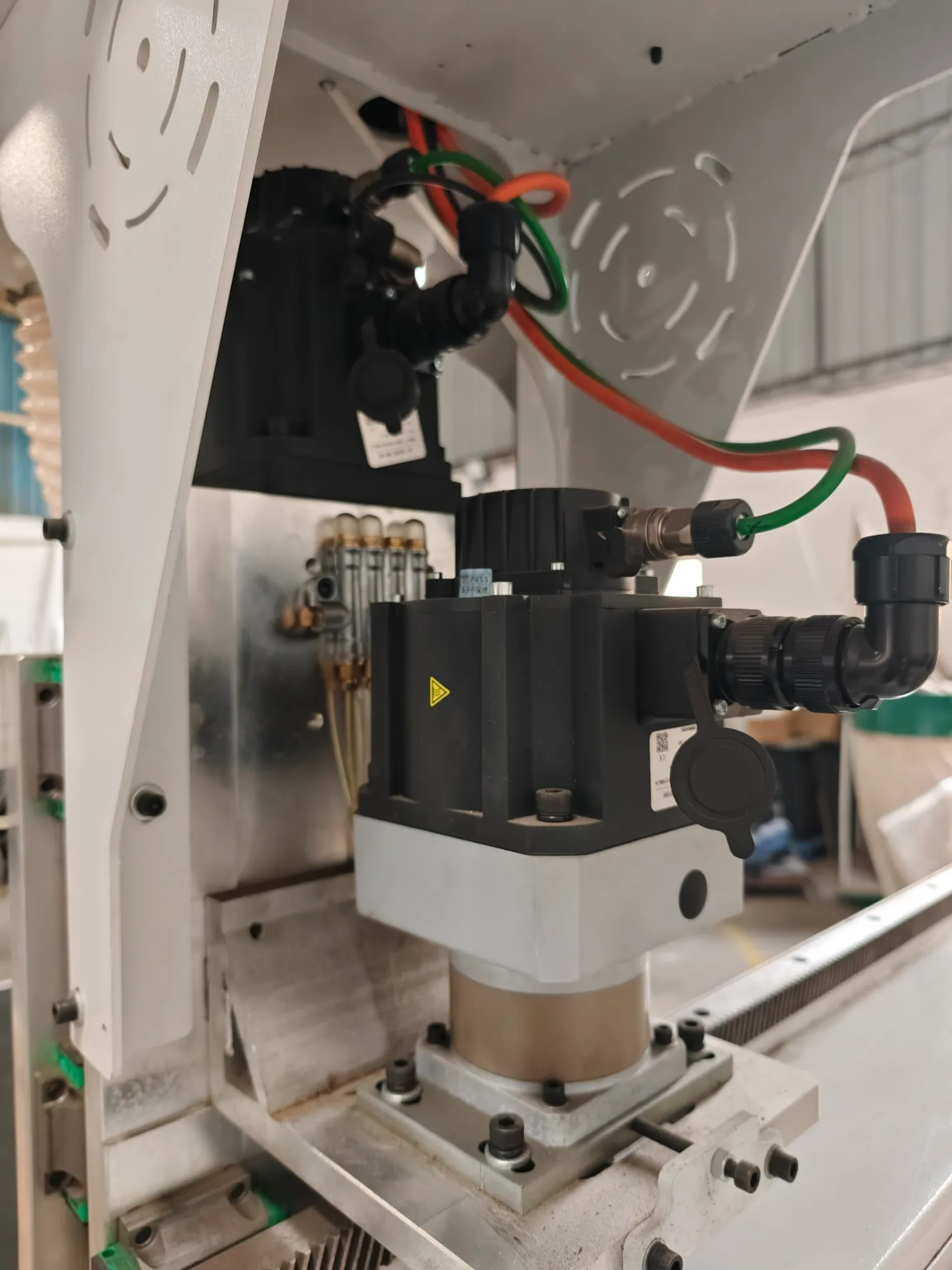

    • Features X-Y axis precision helical rack transmission combined with ALF090-7-K3 planetary reducers, ensuring smooth operation, high positioning accuracy, and consistent machining quality even during extended production runs.
  4. High-Performance Servo Drive System
    • Powered by Huichuan 1.5kW servo motors (4 axes) and an 11kW frequency converter, the machine achieves rapid cutting speeds and precise motion control, delivering superior surface finishes and tight tolerances.
  5. Heavy-Duty Industrial Construction

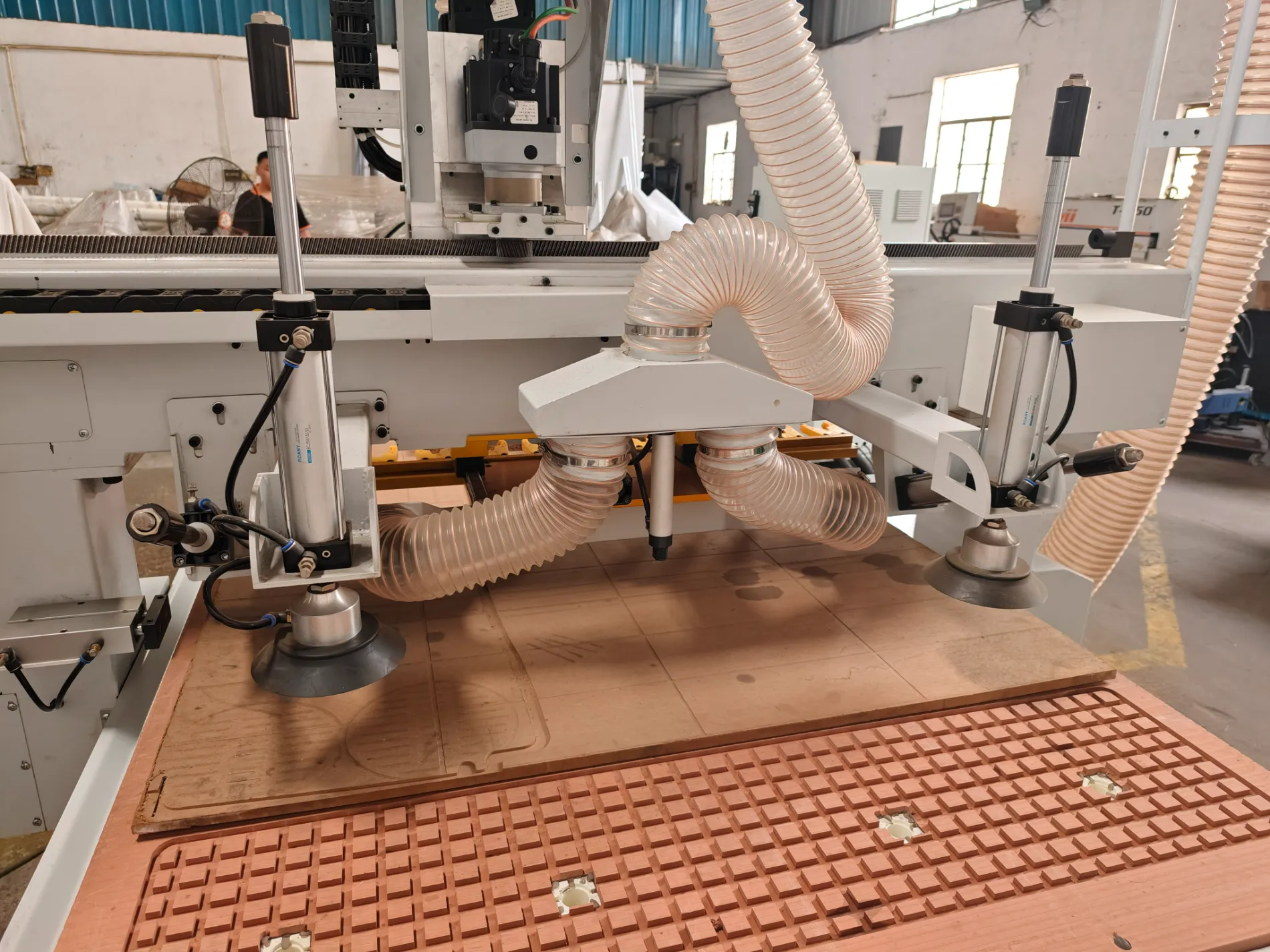

    • Weighing 2500kg with substantial linear guides (Y-30mm × X-25mm) and 6 positioning cylinders, the machine provides exceptional rigidity and stability, minimizing vibration and ensuring long-term reliability in demanding production environments.



This ATC CNC Router represents a professional-grade automated machining solution that combines power, precision, and efficiency. The single 9kW spindle with automatic tool changing capability eliminates the need for manual intervention during complex multi-operation jobs, significantly reducing production time and labor costs. The large 2800×1300mm working area, precision helical rack transmission, and robust 2500kg construction make it ideal for high-volume furniture manufacturing, cabinet making, door production, and custom woodworking applications. With advanced Huichuan servo drives and an 11kW frequency converter, this machine delivers both speed and accuracy, while the automatic tool changer maximizes uptime and operational efficiency. This is an excellent investment for workshops seeking to automate production, improve consistency, and increase overall manufacturing capacity.

Send Inquiry
Contact Us
Share:
Dimensions4000×2300×2200mm
Working stroke2800×1300mm
Spindle motor1x9kw
Working speed(Huichuan)1.5×4kw
Frequency converter power11kw
ReducerALF090-7-K3
Transmission modeX-Y axis precision helical rack
Positioning cylinder6sets
Air supply pressure0.6-0.8Mpa
Frequency50Hz
Voltage380V
Weight2500kg
Number of phasesThree-phase
GuideY-30mm×X-25mm

Why Choose Us

Quality Material

We use only high-grade steel and top-tier components to ensure maximum durability and machine stability.

Accredited

All our products are CE and ISO certified, meeting the highest international safety and quality standards.

Trained Workers

Our highly skilled engineers and professional staff bring years of craftsmanship to every piece of equipment.

Time Availability

We value your time. Our streamlined production ensures your orders are delivered exactly on schedule.

Quick Response

Our dedicated team provides 24/7 instant support and quick replies to all your technical inquiries.

Long-term Warranty

We stand behind our quality with an extensive warranty period and reliable after-sales service.

Frequently Asked Questions

We are a professional manufacturer of woodworking machinery with over 25 years of experience. We have our own production facility, R&D team, and quality control department. You are always welcome to visit our factory in Foshan, China through video calls or in-person visits.

We specialize in a wide range of woodworking equipment, including CNC routers, edge banding machines, sliding table saws, thickness planers, wood sanders, and dust collectors. We can also provide complete production line solutions for furniture making.

Yes, absolutely. Our standard voltage is usually [380V/50Hz/3Phase], but we can customize the motor and electrical components to match your local voltage (e.g., 220V, 415V, 440V, 60Hz, single/three-phase) before production.

Yes, we offer OEM and ODM services. We can customize the machine's color, size, functions, and even put your logo on the machines and packaging based on your specific requirements.

Quality is our top priority. We use high-quality components from world-renowned brands (such as Siemens, Schneider, Omron, etc.). Every machine undergoes strict testing and runs for at least [24-48] hours continuously before packaging to ensure 100% stable performance.

We offer a [12-month] warranty for the whole machine (excluding consumable parts). During the warranty period, if any non-human-damaged parts fail, we will send replacements for free via international express.

For standard machines, the delivery time is usually [7-15] working days after receiving the deposit. For customized machines or complete production lines, it takes about [20-30] working days.

Yes. We provide detailed English user manuals, installation videos, and circuit diagrams. Our engineers are also available for 24/7 online video support. If requested, we can dispatch engineers to your factory for on-site installation and training (costs for flights, accommodation, and daily wages will be covered by the buyer).

We keep a sufficient inventory of standard spare parts for all our machine models. Even after the warranty expires, we supply spare parts at factory cost price and provide lifetime technical support.
