Isaha yePaneli enamabhlade amaninzi (ububanzi obuyi-1270mm kunye neerabha eziyi-8)

Isaha yePaneli enamabhlade amaninzi (ububanzi obuyi-1270mm kunye neerabha eziyi-8)

Inombolo Yemveliso:
SH1300-X2
Iimpawu:
  1. High-Efficiency Batch Cutting, Maximized Productivity
This machine features 10 to 30 configurable saw blades, a 22kW heavy-duty spindle motor, and 2600 RPM high-speed rotation. It completes multiple parallel cuts in a single feed, boosting throughput 5 to 10 times compared to single-blade saws. This makes it ideal for high-volume production in furniture, flooring, door, and cabinet manufacturing facilities.
  1. Wide Processing Range, Excellent Versatility
The saw handles cutting thickness from 3mm to 30mm, accommodating materials from thin veneers to medium-thick panels. It accepts material widths up to 1270mm, compatible with standard 4×8 foot sheets, and minimum material length of 580mm meets most workpiece requirements. Adjustable blade spacing enables quick changeovers between different rip widths, minimizing downtime for small-batch, multi-specification production.
  1. Stable Feed System, Precision Cutting Results

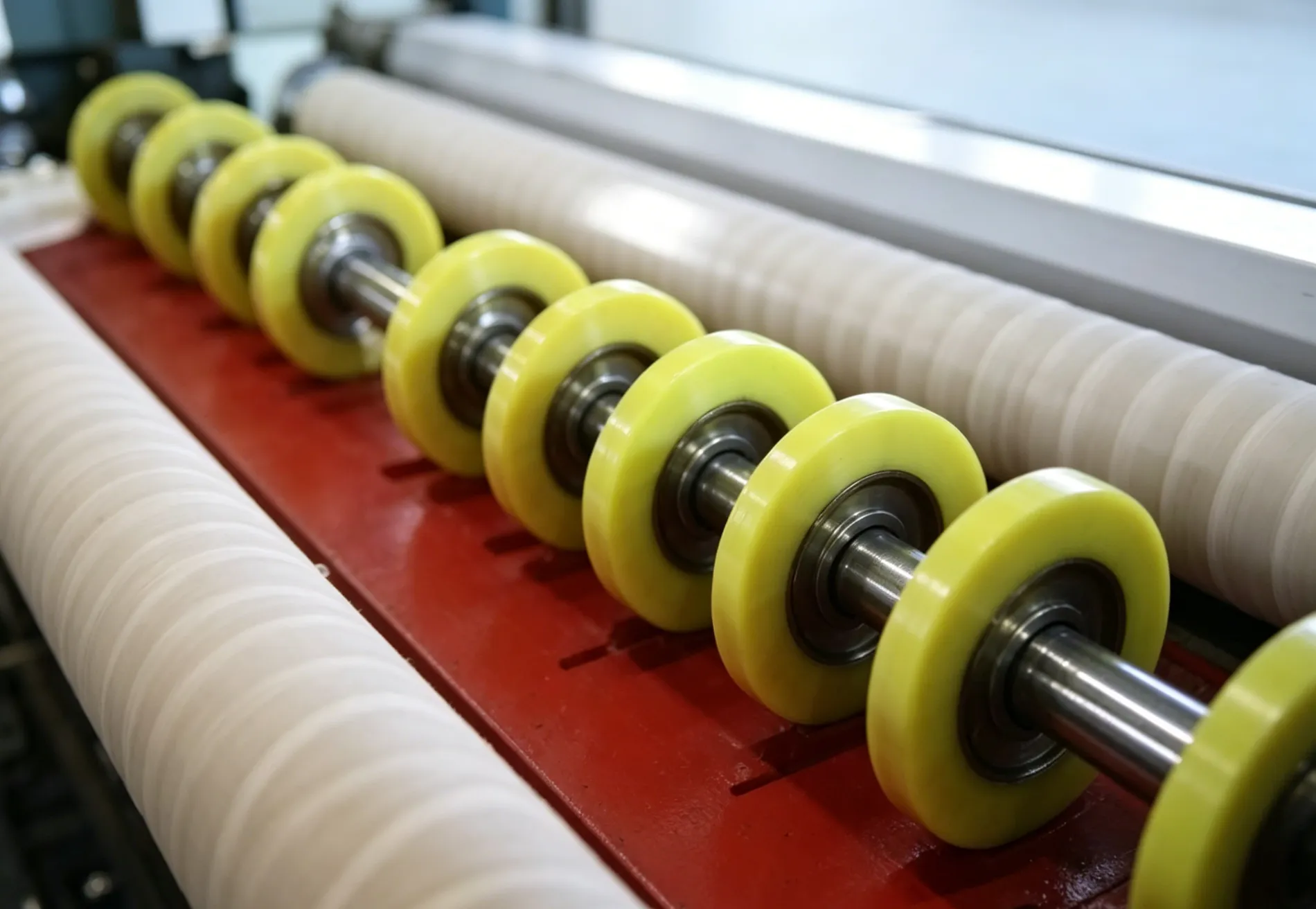

Equipped with 4 sets of pressure feed rollers totaling 8 pieces, plus a 1.5kW independent feed motor, the machine ensures consistent and slip-free material conveyance. This delivers straight, deviation-free cuts with smooth edges and tight dimensional tolerances, reducing the need for secondary sanding or trimming operations.
  1. Modular and Expandable Design, Future-Proof Investment
Both the spindle motor at 22kW and the feed motor at 1.5kW support post-purchase power upgrades. This allows you to scale performance as production demands grow, avoiding premature equipment replacement. The design enables lean capital expenditure: start with the base configuration and upgrade only when needed.
  1. Compact yet Robust Industrial Build
With overall dimensions of 2050 x 1800 x 1300mm, the machine occupies approximately 3.7 square meters, making it space-efficient for workshop layout planning. The 70mm diameter heavy-duty spindle shaft combined with a reinforced frame ensures rigidity and vibration control under continuous load. The machine is engineered for reliable 24/7 operation in demanding industrial environments.
Thumela umbuzo
Qhagamshelana nathi
Yabelana:
Isantya se-spindle               2600 zokujikeleza ngomzuzu
Ukuphakama kokusila              3mm-30mm
Umthamo omkhulu wokugunda         1270mm
Isixhobo sokugawula esifutshane kakhulu   580mm
Idhayamitha yeblade              205mm
Ububanzi be-spindle            φ 7 0 m m
Number of saw blades instaled 10-30pcs
Amandla omqamelo              22kw(Can be expanded)
Amandla okutyisa              1.5kw(Can be expanded)
Irola yokutyhala yokutyisa    4sets/8pcs
Imilinganiselo iyonke         2050×1800×1300mm

Kutheni usikhetha thina

Izinto ezisemgangathweni

Sisebenzisa kuphela intsimbi ekumgangatho ophezulu kunye namacandelo akumgangatho wokuqala ukuqinisekisa ukuqina okugqithisileyo kunye nokuzinza komatshini.

Ivunyiwe

Zonke iimveliso zethu zinezatifikethi ze-CE ne-ISO, zihlangabezana nezona migangatho iphezulu yokhuseleko nomgangatho kumazwe ngamazwe.

Abasebenzi abaqeqeshiweyo

Iinjineli zethu ezinezakhono eziphezulu kunye nabasebenzi bethu abaziingcali bazisa ubuchule beminyaka kwisixhobo ngasinye.

Ukufumaneka kwexesha

Siyaxabisa ixesha lakho. Inkqubo yethu yokuvelisa elula iqinisekisa ukuba ii-odolo zakho zihanjiswa kanye ngexesha elimisiweyo.

Impendulo ekhawulezayo

Iqela lethu elizinikeleyo libonelela ngenkxaso ekhawulezileyo iiyure ezingama-24 ngosuku, iintsuku ezisi-7 ngeveki, kunye neempendulo ezikhawulezileyo kuwo onke amabuzo akho obuchwepheshe.

Iwaranti yexesha elide

Simi ngomgangatho wethu ngenxa yexesha elide lewaranti kunye nenkonzo ethembekileyo yasemva kokuthengisa.

Imibuzo Ebuzwa Rhoqo

Singabenzi abaziingcali boomatshini bokulungisa iinkuni, sinamava angaphezu kweminyaka engama-25. Sinendawo yethu yokuvelisa, iqela loPhando noPhuhliso (R&D), kunye nesebe lolawulo lomgangatho. Uyamkelekile nanini na ukuba undwendwele umzi-mveliso wethu oseFoshan, eTshayina, ngevidiyo okanye buqu.

Siyingcali kuluhlu olubanzi lwezixhobo zokusebenza ngamaplanga, eziquka ii-CNC routers, oomatshini bokufaka i-edge banding, ii-sliding table saws, ii-thickness planers, izixhobo zokuhlikihla amaplanga, kunye noomatshini bokuhlanganisa uthuli. Sikwabonelela ngezisombululo ezipheleleyo zemigca yokuvelisa yokwenza ifenitshala.

Ewe, ngokuqinisekileyo. I-voltage yethu esemgangathweni idla ngokuba yi-[380V/50Hz/3Phase], kodwa singakwazi ukwenza imoto kunye namacandelo ombane ahambelane ne-voltage yendawo yakho (umz., 220V, 415V, 440V, 60Hz, single/three-phase) phambi kokuveliswa.

Ewe, sinikezela ngeenkonzo ze-OEM neze-ODM. Singakwazi ukwenza umatshini ngokweemfuno zakho, ngokweemfuno zakho ezithile, ngokwenza umbala, ubungakanani, nemisebenzi yawo, kwaye singade sifake nelogo yakho koomatshini nakwipakethe.

Umgangatho yeyona nto iphambili kuthi. Sisebenzisa iinxalenye ezikumgangatho ophezulu ezivela kwiibrendi ezaziwayo kwihlabathi jikelele (ezifana neSiemens, Schneider, Omron, njl.njl.). Umatshini ngamnye uhlolwa ngokungqongqo kwaye usebenza iiyure ezingama-[24-48] ngokuqhubekayo phambi kokuba upakishwe, ukuqinisekisa ukusebenza okuzinzileyo nge-100%.

Sinikezela ngwaranti [yeenyanga ezili-12] kumatshini uphela (ngaphandle kwezixhobo ezisetyenziswayo). Ngethuba lwaranti, ukuba kukho naziphi na izixhobo ezonakeleyo ngaphandle kokonakalisa komntu, siza kuthumela ezinye ezitsha simahla nge-express yamazwe ngamazwe.

Kwiimatshini eziqhelekileyo, ixesha lokuhanjiswa lidla ngokuba ziintsuku zokusebenza eziyi-[7-15] emva kokufumana idipozithi. Kwiimatshini ezenziwe ngokweemfuno zomthengi okanye imigca yokuvelisa epheleleyo, kuthatha malunga neentsuku zokusebenza eziyi-[20-30].

Ewe. Sinikezela ngeencwadana zemiyalelo zomsebenzisi ezineenkcukacha ngesiNgesi, iividiyo zofakelo, kunye nemizobo yocwangciso lwezixhobo zombane. Iinjineli zethu nazo ziyafumaneka ngenkxaso yevidiyo kwi-intanethi iiyure ezingama-24 ngosuku, iintsuku ezisi-7 ngeveki. Ukuba kuceliwe, singathumela iinjineli kwifektri yakho ukuze zifake izixhobo apha kwaye ziqeqeshe abasebenzi (iindleko zeenqwelomoya, indawo yokuhlala, kunye nemivuzo yemihla ngemihla ziya kuhlawulwa ngumthengi).

Sigcina isitokhwe esaneleyo seengxenye ezitshintshwayo eziqhelekileyo kuzo zonke iimodeli zeematshini zethu. Nangona isiqinisekiso siphelelwe lixesha, sinikezela ngeengxenye ezitshintshwayo ngexabiso lasefektri kwaye sinikezela ngenkxaso yobuchwepheshe ubomi bonke.
