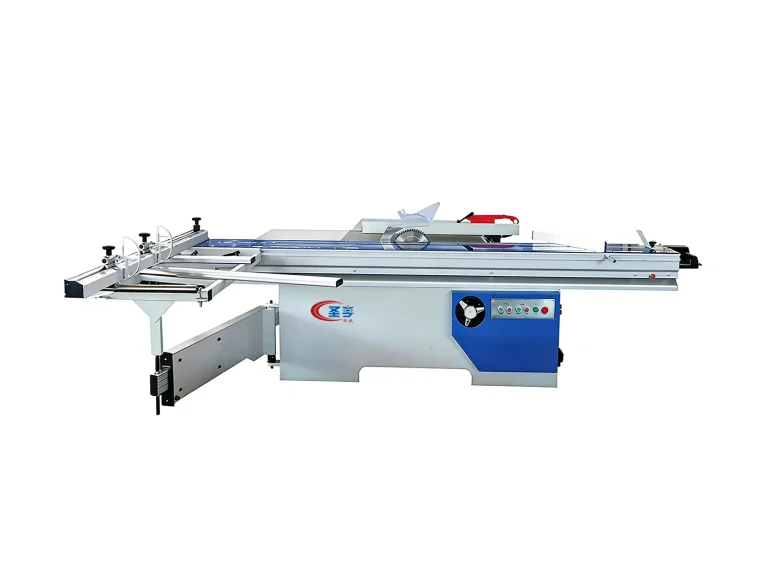

Isila sephaneli esineTafile eTyibilikayo eChaneke Kakhulu

Inombolo Yemveliso:

SHPS001

Iimpawu:

Type: This is a sliding table saw, also known as a panel saw, primarily used in woodworking for cutting large pieces of material.

Function: This machine is designed for precise cutting of a wide variety of materials, including MDF, plywood, particleboard, melamine board, ABS board, PVC board, acrylic board, and solid wood.

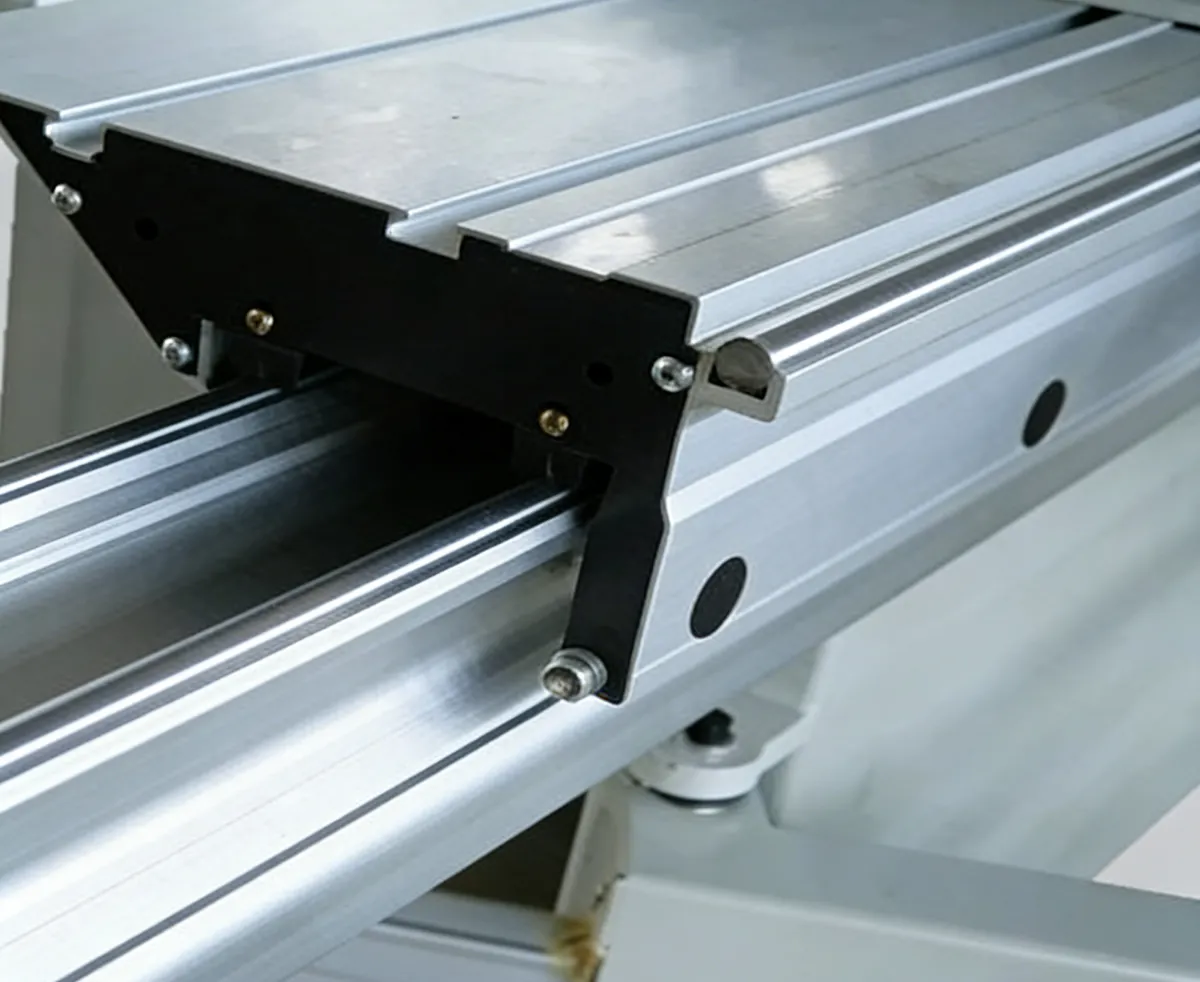

Mechanical Structure: Unlike traditional table saws that push material across a fixed worktable, this saw uses a sliding carriage to move the fixed material along a controlled linear path through the saw blade, ensuring high precision.

Specifications: The “3200” in the model name typically indicates a maximum cutting length of 3200 mm (approximately 10.5 feet).

Applications: These machines are common in workshops and manufacturing plants for breaking down large sheets of board into precise parts, particularly suitable for cabinet making and furniture production.

Thumela umbuzo

Qhagamshelana nathi

Udidi lweMveliso: Iziqhushumbisi Zokuqhuba IiphaneliIsaha yepaneli

Yabelana:

Imodeli	SHPS001-a	SHPS001-b	SHPS001-c	Imodeli	SHPS001-a	SHPS001-b	SHPS001-c
Slide Worktable Max Distance	3400mm	3200mm		Amandla eNjini eSihlalo ePhambili	5.5kw	5.5kw	5.5kw
Max SawingLength	3200mm	3000mm	2800mm		1.1kw	1.1kw	1.1kw
Max Sawing Thickness	I-80mm	I-80mm	I-80mm	Electronical Lift Motor	0.025kw	0.025kw	0.025kw
45°Titing Max Sawing Thickness	70mm	70mm		Dust Outlet Diameter	中100mm(4”)	中100mm(4″)	Ø100mm(4”)
Main Saw Blade Dimension(max	中305×φ30mm	中305×φ30mm	φ305×φ30mm	Overall Dimension(Ixwxh)	3370×3080×1150mm	3170×3080×1150mm	2970×3080×1150mm
Groove-saw Blade Dimension	φ120×φ20mm			Morking Voltage	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Main Saw Arbor Totary Speed	4000/5000 iijiko ngomzuzu		4000/5000 iijiko ngomzuzu	Weight Of Machine	830kg	820kg	810kg
Groove-saw Arbor Rotary Speed	9000 r/min	9000 r/min	9000 r/mn

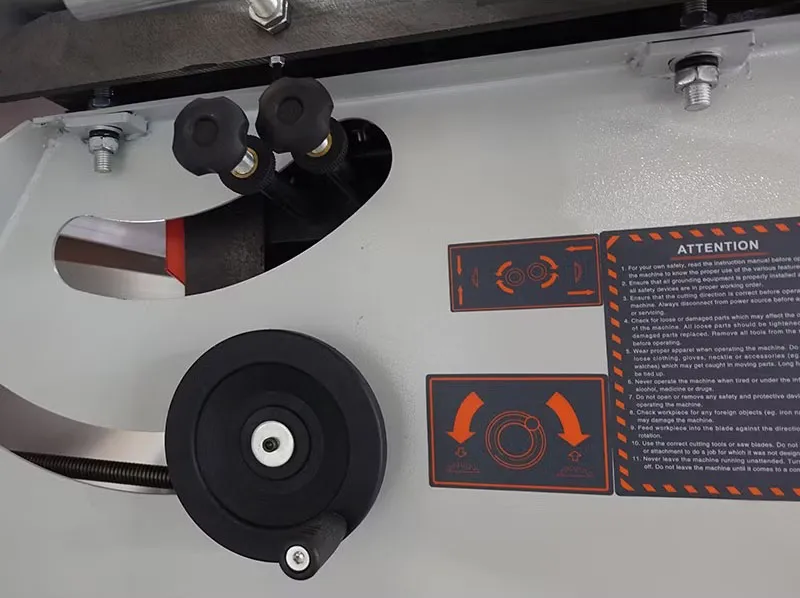

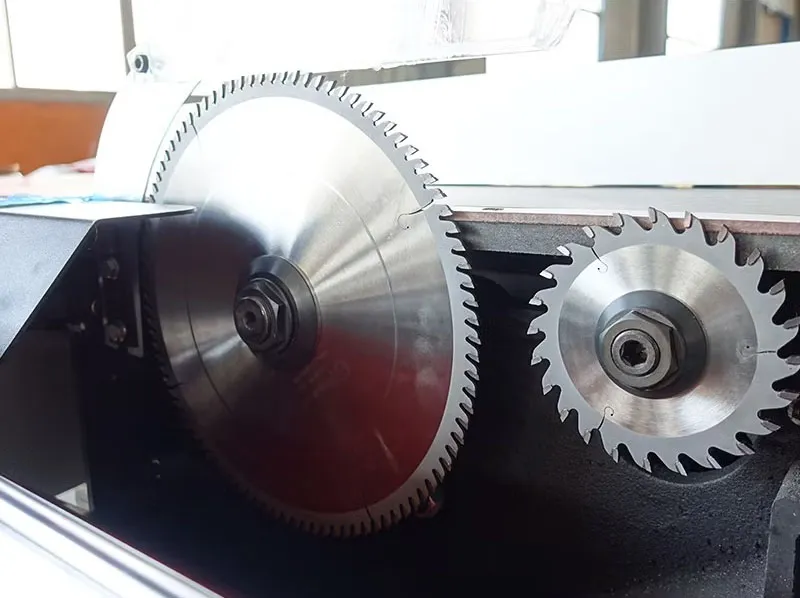

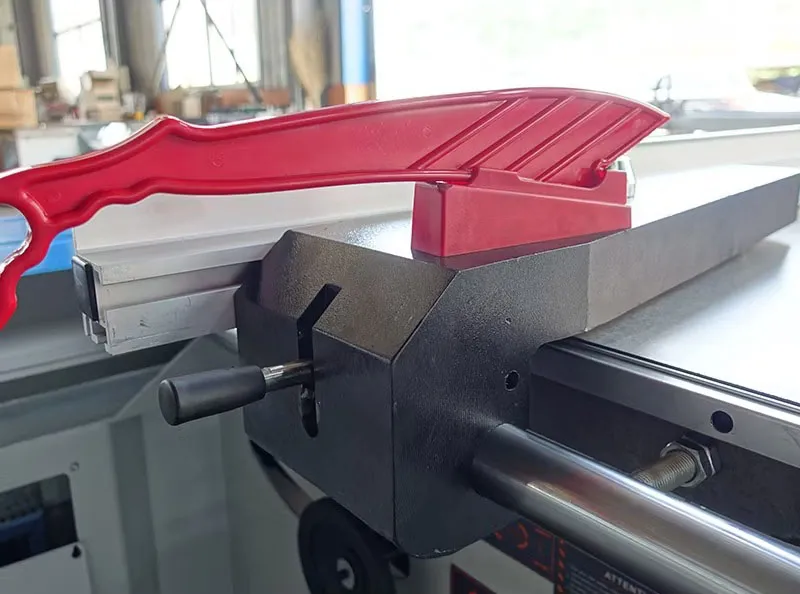

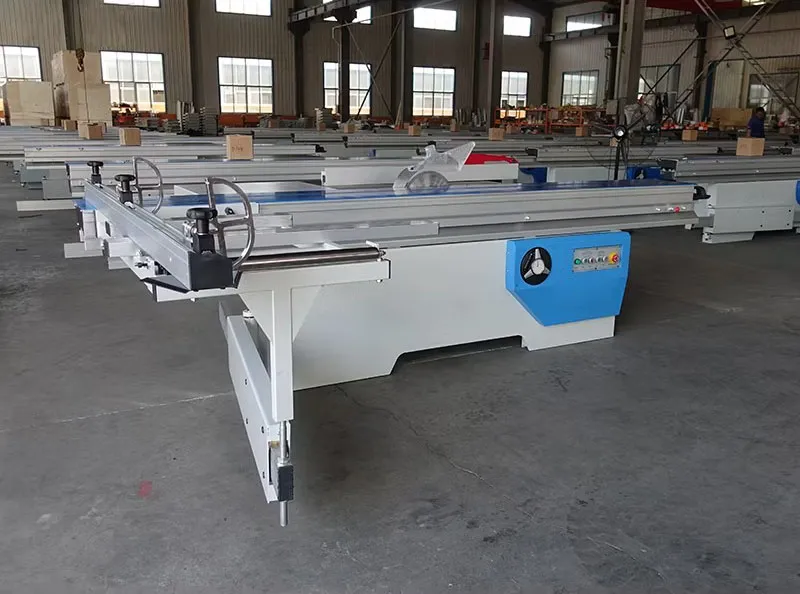

Isikere sepaneli setafile esityibilikayo esichanekileyo

Kutheni usikhetha thina

Izinto ezisemgangathweni

Sisebenzisa kuphela intsimbi ekumgangatho ophezulu kunye namacandelo akumgangatho wokuqala ukuqinisekisa ukuqina okugqithisileyo kunye nokuzinza komatshini.

Ivunyiwe

Zonke iimveliso zethu zinezatifikethi ze-CE ne-ISO, zihlangabezana nezona migangatho iphezulu yokhuseleko nomgangatho kumazwe ngamazwe.

Abasebenzi abaqeqeshiweyo

Iinjineli zethu ezinezakhono eziphezulu kunye nabasebenzi bethu abaziingcali bazisa ubuchule beminyaka kwisixhobo ngasinye.

Ukufumaneka kwexesha

Siyaxabisa ixesha lakho. Inkqubo yethu yokuvelisa elula iqinisekisa ukuba ii-odolo zakho zihanjiswa kanye ngexesha elimisiweyo.

Impendulo ekhawulezayo

Iqela lethu elizinikeleyo libonelela ngenkxaso ekhawulezileyo iiyure ezingama-24 ngosuku, iintsuku ezisi-7 ngeveki, kunye neempendulo ezikhawulezileyo kuwo onke amabuzo akho obuchwepheshe.

Iwaranti yexesha elide

Simi ngomgangatho wethu ngenxa yexesha elide lewaranti kunye nenkonzo ethembekileyo yasemva kokuthengisa.

Imibuzo Ebuzwa Rhoqo

Singabenzi abaziingcali boomatshini bokulungisa iinkuni, sinamava angaphezu kweminyaka engama-25. Sinendawo yethu yokuvelisa, iqela loPhando noPhuhliso (R&D), kunye nesebe lolawulo lomgangatho. Uyamkelekile nanini na ukuba undwendwele umzi-mveliso wethu oseFoshan, eTshayina, ngevidiyo okanye buqu.

Siyingcali kuluhlu olubanzi lwezixhobo zokusebenza ngamaplanga, eziquka ii-CNC routers, oomatshini bokufaka i-edge banding, ii-sliding table saws, ii-thickness planers, izixhobo zokuhlikihla amaplanga, kunye noomatshini bokuhlanganisa uthuli. Sikwabonelela ngezisombululo ezipheleleyo zemigca yokuvelisa yokwenza ifenitshala.

Ewe, ngokuqinisekileyo. I-voltage yethu esemgangathweni idla ngokuba yi-[380V/50Hz/3Phase], kodwa singakwazi ukwenza imoto kunye namacandelo ombane ahambelane ne-voltage yendawo yakho (umz., 220V, 415V, 440V, 60Hz, single/three-phase) phambi kokuveliswa.

Ewe, sinikezela ngeenkonzo ze-OEM neze-ODM. Singakwazi ukwenza umatshini ngokweemfuno zakho, ngokweemfuno zakho ezithile, ngokwenza umbala, ubungakanani, nemisebenzi yawo, kwaye singade sifake nelogo yakho koomatshini nakwipakethe.

Umgangatho yeyona nto iphambili kuthi. Sisebenzisa iinxalenye ezikumgangatho ophezulu ezivela kwiibrendi ezaziwayo kwihlabathi jikelele (ezifana neSiemens, Schneider, Omron, njl.njl.). Umatshini ngamnye uhlolwa ngokungqongqo kwaye usebenza iiyure ezingama-[24-48] ngokuqhubekayo phambi kokuba upakishwe, ukuqinisekisa ukusebenza okuzinzileyo nge-100%.

Sinikezela ngwaranti [yeenyanga ezili-12] kumatshini uphela (ngaphandle kwezixhobo ezisetyenziswayo). Ngethuba lwaranti, ukuba kukho naziphi na izixhobo ezonakeleyo ngaphandle kokonakalisa komntu, siza kuthumela ezinye ezitsha simahla nge-express yamazwe ngamazwe.

Kwiimatshini eziqhelekileyo, ixesha lokuhanjiswa lidla ngokuba ziintsuku zokusebenza eziyi-[7-15] emva kokufumana idipozithi. Kwiimatshini ezenziwe ngokweemfuno zomthengi okanye imigca yokuvelisa epheleleyo, kuthatha malunga neentsuku zokusebenza eziyi-[20-30].

Ewe. Sinikezela ngeencwadana zemiyalelo zomsebenzisi ezineenkcukacha ngesiNgesi, iividiyo zofakelo, kunye nemizobo yocwangciso lwezixhobo zombane. Iinjineli zethu nazo ziyafumaneka ngenkxaso yevidiyo kwi-intanethi iiyure ezingama-24 ngosuku, iintsuku ezisi-7 ngeveki. Ukuba kuceliwe, singathumela iinjineli kwifektri yakho ukuze zifake izixhobo apha kwaye ziqeqeshe abasebenzi (iindleko zeenqwelomoya, indawo yokuhlala, kunye nemivuzo yemihla ngemihla ziya kuhlawulwa ngumthengi).

Sigcina isitokhwe esaneleyo seengxenye ezitshintshwayo eziqhelekileyo kuzo zonke iimodeli zeematshini zethu. Nangona isiqinisekiso siphelelwe lixesha, sinikezela ngeengxenye ezitshintshwayo ngexabiso lasefektri kwaye sinikezela ngenkxaso yobuchwepheshe ubomi bonke.
